Solar Air Heater Collector Panel by Solar Effects Passive/Active Solar Heat

Solar Air Heater Panel Passive/Active heat panel Collector made from top quality materials by Solar Effects. Fully Serviceable and made to any custom size. 46' x 46' x 1 1/2" panel dimensions.

$ 375.00 Back
Quantity:

This Solar Air Heater incorporates the newest technology and materials on the market today.

This is the thinnest solar air heater on the market today with a panel thickness of only 1 1/2" but this panel has the same output as models 5 times thicker.

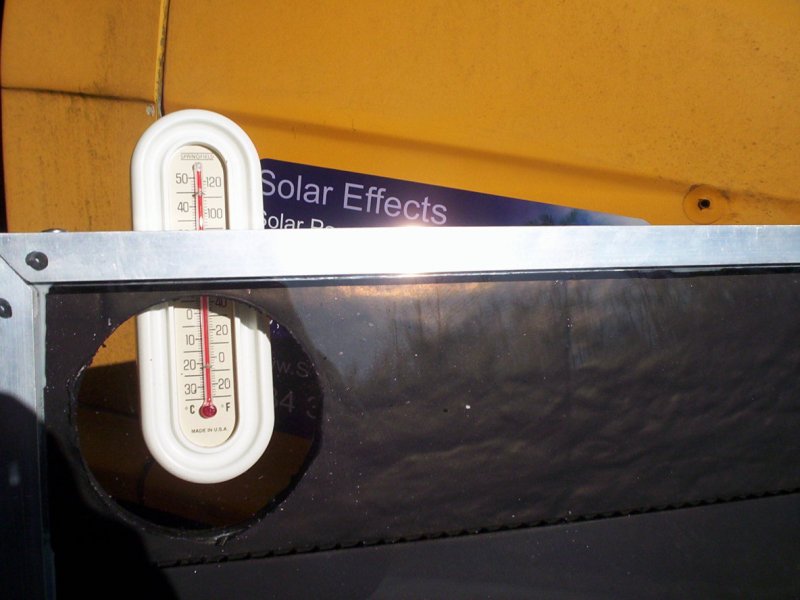

In the pictures you will see that with the panel drawing air directly from the outside air at 44 degrees the panel produces over 125 degrees worth of heat at the outlet port. The temperatures that this panel will produce will be much greater when drawing air into the inlet port from inside your home.

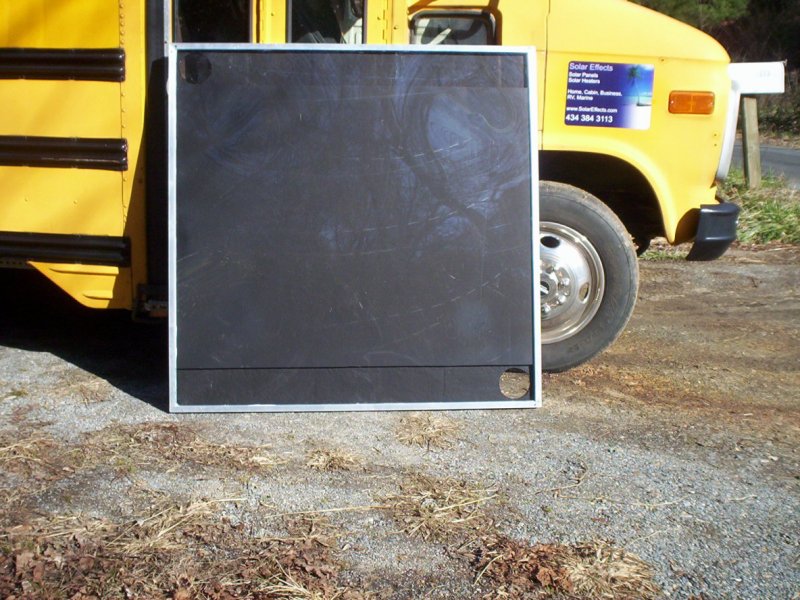

The panel can be ordered with silver or black frame and can be used as a passive or active solar heater.

These panels are fully serviceable. Any component of this panel can be replaced. The Glazing can be replaced just by removing a few screws. With the ability to service this panel you could convert it to a solar hot water panel if you desired.

We can custom make any size panel that you desire from 4'x8' and smaller. We can all so place the inlet and outlet ports in any location that you desire to make installation a breeze.

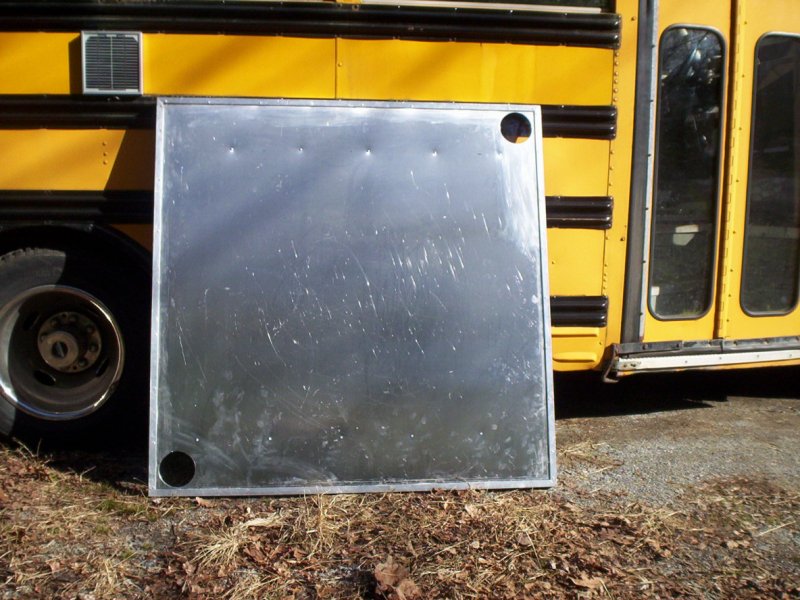

Panel has .040" aluminum backer and high density foam insulation with an in incredible new solar absorber plate that incorporates two additional .040" aluminum plates with a high density, corrugated core. The collector is coated with the best and newest solar absorbing coating on the market today.
The glazing is top quality 3/8" acrylic that will not yellow or deteriorate.

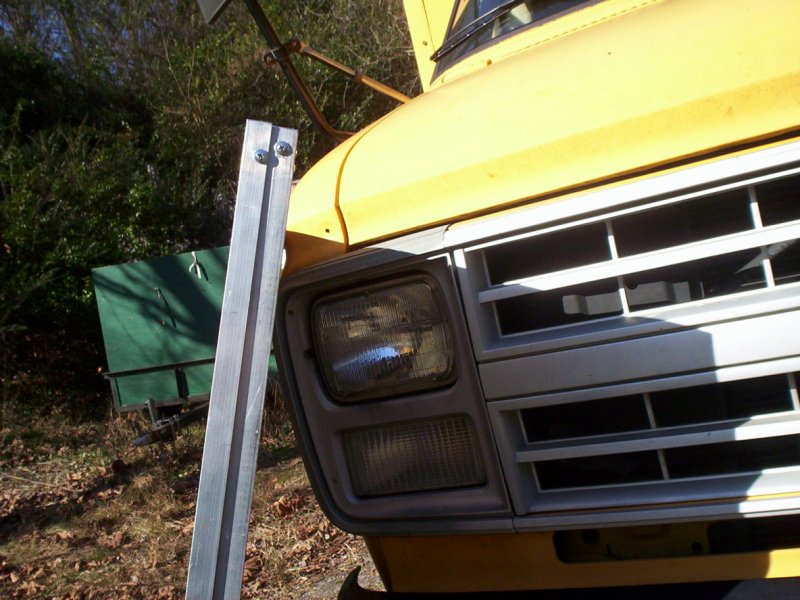

The frame of the panel is made out of 1/8" extruded aluminum.

Panel dimensions 46" x 46" x 1 1/2"
Solar air heat panel weight 42 lbs.

The inlet and outlet ports are 4" diameter and use standard ducting available from any hardware store or home improvement establishment.

Call for Shipping quote
